MCR 9 RDO
The Magic Carpet Ride – available now!
Ride faster, go farther, stay longer
50mm of CVA suspension gives you confidence, comfort, and control on off-road excursions.
By adding our CVA full suspension to a dedicated gravel bike platform, we’re blending the confidence and control of a cross-country race bike with the efficiency, fit, and responsive handling of a gravel bike. The result is a drop bar bike with superior comfort, power delivery, and pure, unadulterated fun.
The suspension question: asked and answered
Why forge the first drop-bar full-suspension bike? Because Niner Bikes was founded in 2005 with a simple goal. Making riding on dirt a better experience, period. We’ve been pioneers in off road technology. First, it was the 29er wheel size. In 2008, it was our Constantly Varying Arc full suspension design. In 2013, it was the first RLT gravel bikes, purpose built for the demands of long days pedaling on rough surfaces.
Fourteen years later, the MCR 9 RDO is a natural extension of our original effort. When you ride one, you’ll see. More comfort, more confidence, more control, and more fun and freedom. By adapting high performance suspension for gravel, we believe the MCR 9 will allow gravel riders to pedal comfortably, powerfully, with more control and confidence over once-unthinkable surfaces. We’re proud to be the pioneers bringing full suspension to gravel bikes.
Gravel-tuned CVA suspension
At the heart of the MCR is Niner’s patented, proven, Constantly Varying Arc (CVA) suspension system. It debuted in 2008 and has been incrementally refined ever since. But the fundamentals have not changed: CVA is stable yet supple while climbing and pedaling; sensitive and supportive going downhill; consistent and controlled in every situation.
For the MCR 9 RDO, we changed the suspension curve to emphasize performance for a seated, pedaling rider. It’s tuned to be especially sensitive to high frequency, low amplitude bumps, and more linear with less end-stroke progression. Configured as a short-travel system, we want riders to easily achieve full travel with less emphasis on big hits and bottom out resistance like you’d find on our mountain bikes.
In the MCR 9 RDO, we made the most sophisticated, tunable suspension system possible, with minimum unsprung weight. By suspending as much of the bike and rider mass as possible, we achieve the most sensitive, compliant ride possible. For the suspension to be effective for riders who are seated and pushing on the pedals, this was a critical piece of the full suspension puzzle to nail down.
Air springs are infinitely tunable to suit a wide range of riders and their gear. And oil damping is essential, both for controlling compression energy inputs from the rider and for dissipating rebound energy as the suspension recovers from bumps of all sizes.
Control and comfort, for confidence like no other
The MCR 9 is more than a gravel bike. It doesn’t skitter and skate through corners. It doesn’t buck you out of the saddle when you pedal through washboards, ruts, and cobblestoned stream crossings. And descending rough roads at speed is not a white-knuckle fear fest.
Why? Because it doesn’t rely simply on tire pressure and undamped frame flex for suspension. Thanks to suspension, the MCR 9 encourages sitting deep in the saddle and pedaling powerfully through chop. It hugs the ground and tracks corners like a slot car. It’s planted and confident on high speed descents. It leaves you fresher, with more energy and less wasted effort, by isolating you from intrusive bump inputs.
If light weight, endless uphills, and ruthless efficiency is your thing, our RLT 9 gravel bike series is your jam. If steep, rough descents and straight up singletrack figures prominently in your plans, consider the RKT 9 RDO mountain bike.
But if you want an entirely new outlook on gravel,one that marries the confidence and comfort of a mountain bike with the efficiency and fit of a gravel bike, hop on this Magic Carpet for the ride of your life.
Nine things you need to know
1. 50mm of stable yet supple CVA suspension with a refined curve for small bump performance and full travel.
2. Rear shock lockout with handlebar remote; fork lockout.
3. RDO carbon fiber main frame and rear triangle with forged, 1-piece linkages.
4. Integrated rear fender protects suspension components.
5. 11 fixed mounting points for frame bags, bottles, and more.
6. Removable front derailleur mount, for 2x and 1x chainring options.
7. Durable, long-lasting Enduro Max “Black Oxide” pivot bearings.
8. Clearance for 700x50c and 650b x 2.0 tires.
9. End-to-end, Full Sleeve internal cable guides including
dropper post routing and integrated frame protection.
“Thanks to its ability to maintain contact with the ground no matter the imperfections, the MCR was the most confidence inspiring drop bar bike I’ve ridden on dirt roads.”
“It lives up to the hype. I was able to comfortably and safely ride stuff I’d otherwise have no business tackling on a gravel bike. But I could also cruise along on the pavement and dirt roads.”
MCR 9 RDO
Niner Bikes reserves the right to change bike assembly specification at any time without notice. While we make every effort to publish accurate build specs, substitutions and/or running changes may be made without warning.

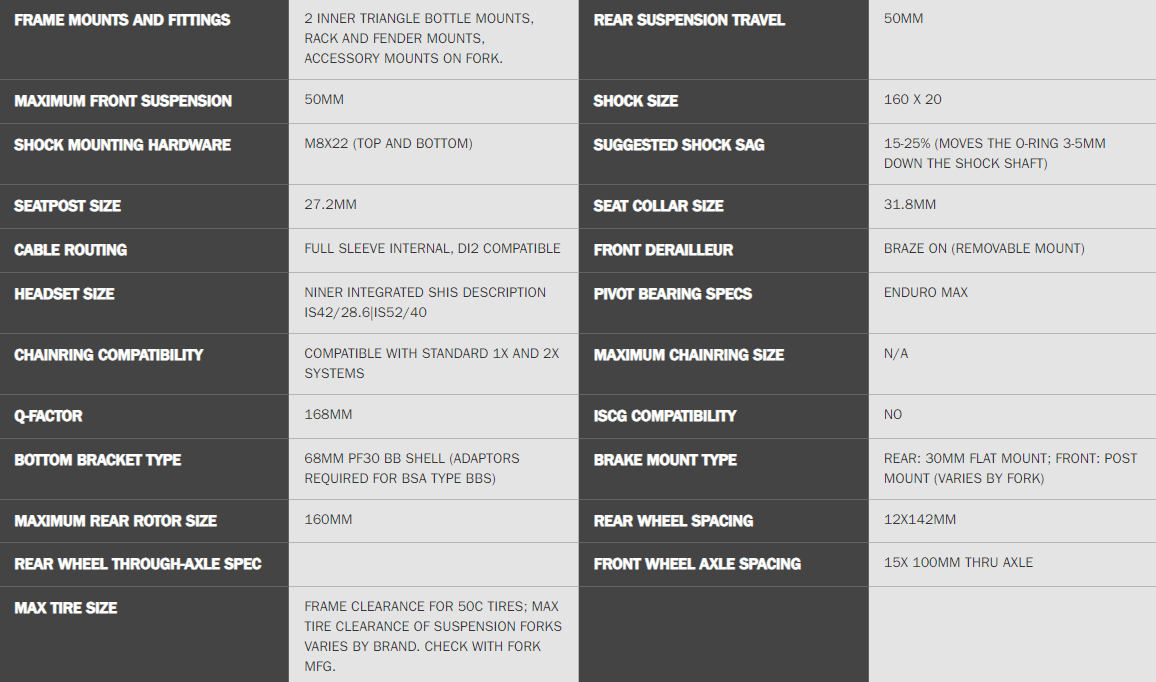

TABELA DE GEOMETRIA
FERRAGENS E SUPORTES PARA ARMAÇÕES
2 INNER TRIANGLE BOTTLE MOUNTS, RACK AND FENDER MOUNTS, ACCESSORY MOUNTS ON FORK.
SUSPENSÃO DIANTEIRA MÁXIMA
TAMANHO DO CHOQUEHARDWARE DE MONTAGEM POR CHOQUE
M8X22 (TOP AND BOTTOM)
TAMANHO DO ESPIGÃO DE SELIM
ENCAMINHAMENTO DE CABOS
FULL SLEEVE INTERNAL, DI2 COMPATIBLE
TAMANHO DO FONE DE OUVIDO
1.125″ X 1.5″ TAPERED ZERO STACK HEADSET INCLUDED, 44MM UPPER, 56MM LOWER, CANE CREEK DESCRIPTION: ZS44/28.6 ZS56/40
COMPATIBILIDADE COM ANÉIS DE CORRENTE
COMPATIBLE WITH STANDARD 1X AND 2X SYSTEMS
TIPO DE SUPORTE INFERIOR
68MM PF30 BB SHELL (ADAPTORS REQUIRED FOR BSA TYPE BBS)
TAMANHO MÁXIMO DO ROTOR TRASEIRO
ESPECIFICAÇÃO DO EIXO TRANSVERSAL DA RODA TRASEIRA
TAMANHO MÁXIMO DO PNEU
FRAME CLEARANCE FOR 50C TIRES; MAX TIRE CLEARANCE OF SUSPENSION FORKS VARIES BY BRAND. CHECK WITH FORK MFG.
CURSO DA SUSPENSÃO TRASEIRA
TAMANHO DO CHOQUE
160 X 20
SUGESTÃO DE AMORTECIMENTO DE CHOQUES
15-25% (MOVES THE O-RING 3-5MM DOWN THE SHOCK SHAFT)
TAMANHO DO COLARINHO DO ASSENTO
BRAZE ON (REMOVABLE MOUNT)
ESPECIFICAÇÕES DO ROLAMENTO PIVÔ
TAMANHO MÁXIMO DA CORRENTE
COMPATIBILIDADE COM O ISCG
TIPO DE MONTAGEM DO FREIO
REAR: 30MM FLAT MOUNT; FRONT: POST MOUNT (VARIES BY FORK)
ESPAÇAMENTO ENTRE AS RODAS TRASEIRAS
ESPAÇAMENTO ENTRE EIXOS DAS RODAS DIANTEIRAS
15X 100MM THRU AXLE
