RIP e9

More dirt, more often

Stay out longer, go a little farther, summit sooner.

A quick, 150mm-travel trail bike for picking off mid-week missions and day-long excursions

Por mais de uma década, a RIP 9 RDO comanda nossa linha de bikes off-road. Em 2019, essa bike evoluiu novamente. Nossa bike de trilha faz tudo chega com uma consistente suspensão de 140mm CVA, progressiva e de geometria ajustável, e com um quadro mais rígido. Além disso ganha destaque para os canotes retráteis de 170mm, com alcance maior e um tubo da cabeça mais curto. Mais versátil e capaz do que nunca, leve sua RIP para enfrentar qualquer trilha!

Made with metal

We start with a hand welded 6061 aluminum frame and a one-piece motor mount that unifies the upper and lower pivot locations with the shock mount for exceptional stiffness. Forged seat- and chainstay yokes, rocker arm, hollowed dropouts, plus our signature Enduro Max Black Oxide pivot bearings, make this all-new Niner chassis rock solid.



Powered by Bosch

A Bosch Performance Line CX motor delivers smooth pedal assist with no surprises. Torque sensitive, zero-lag power delivery is predictable in all conditions. And the 625wh battery means you can ride farther without fear of losing the juice.

But above all, Niner ride quality is paramount. Accordingly, the RIP e9 suspension behavior was carefully evaluated during development. The addition of pedal assist reduced the importance of Niner’s signature CVA system and the elaborately tuned, highly efficient pedaling platform it offers.

Superior suspension

With the freedom to consider a range of proven, well-suited suspension designs, our engineers turned to (and hot-rodded) a Horst-link 4-bar system. Turning over every rock in pursuit of performance, we adjusted the leverage ratio, shock length, stroke, orientation and mounting location to elicit Niner’s signature kinematics. Using a “right side up” trunnion shock mount, bearings in the rocker arm are free to rotate smoothly.. The net result is a remarkably supple, balanced suspension curve that’s equally at home going uphill or down, and ready to take on any trail.

Whether you want to rack up more rides per week, wring out more mileage per ride, or just inject the everyday with a dose of extraordinary, the RIP e9 is ready to roll.

RIP E9

Limpar

A Niner Bikes se reserva ao direito de modificar as especificações de montagem a qualquer momento sem aviso prévio. Enquanto isso faremos o possível para publicar informações precisas sobre as especificações de montagem, substituições e/ou mudanças em progresso que sejam feitas sem aviso.

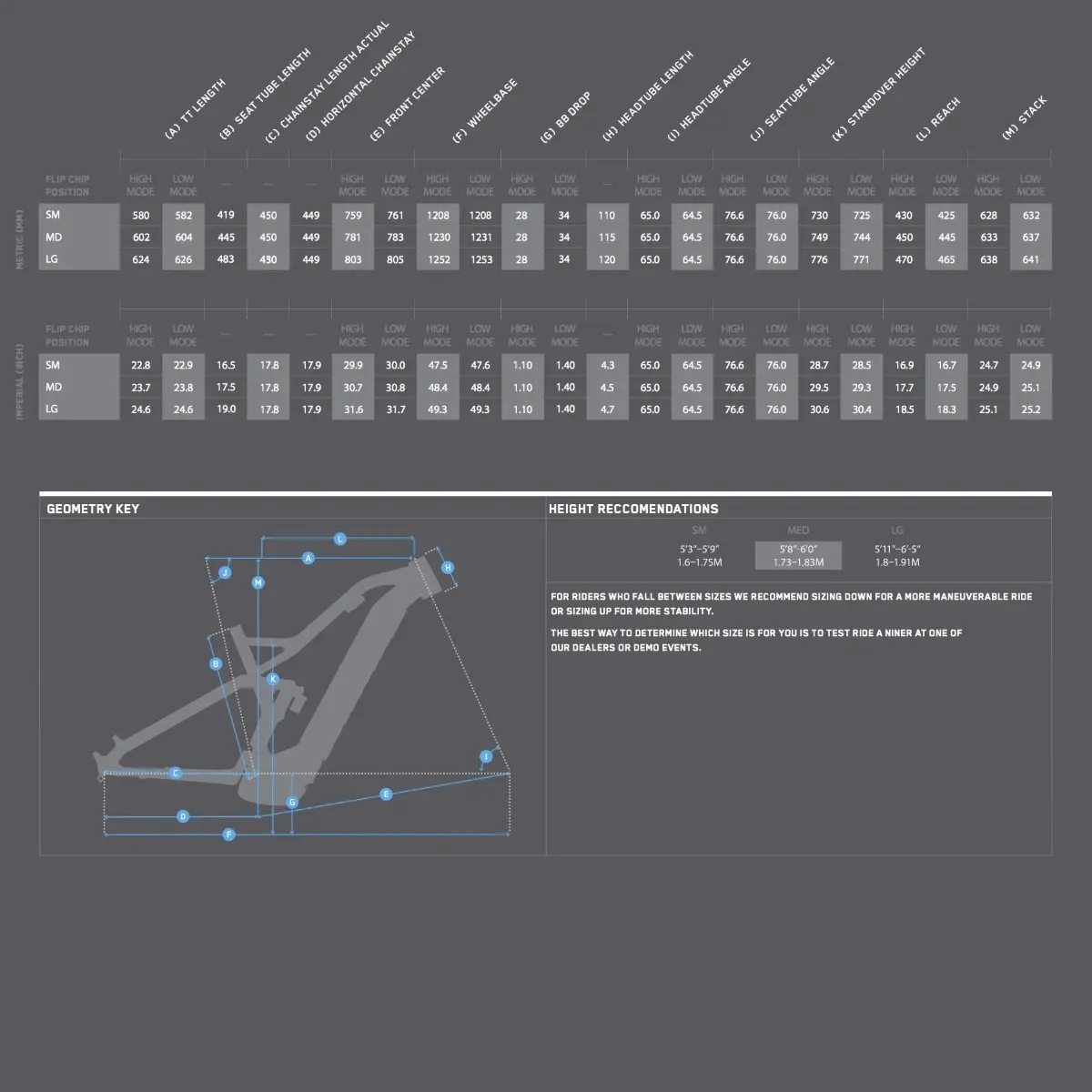

TABELA DE GEOMETRIA

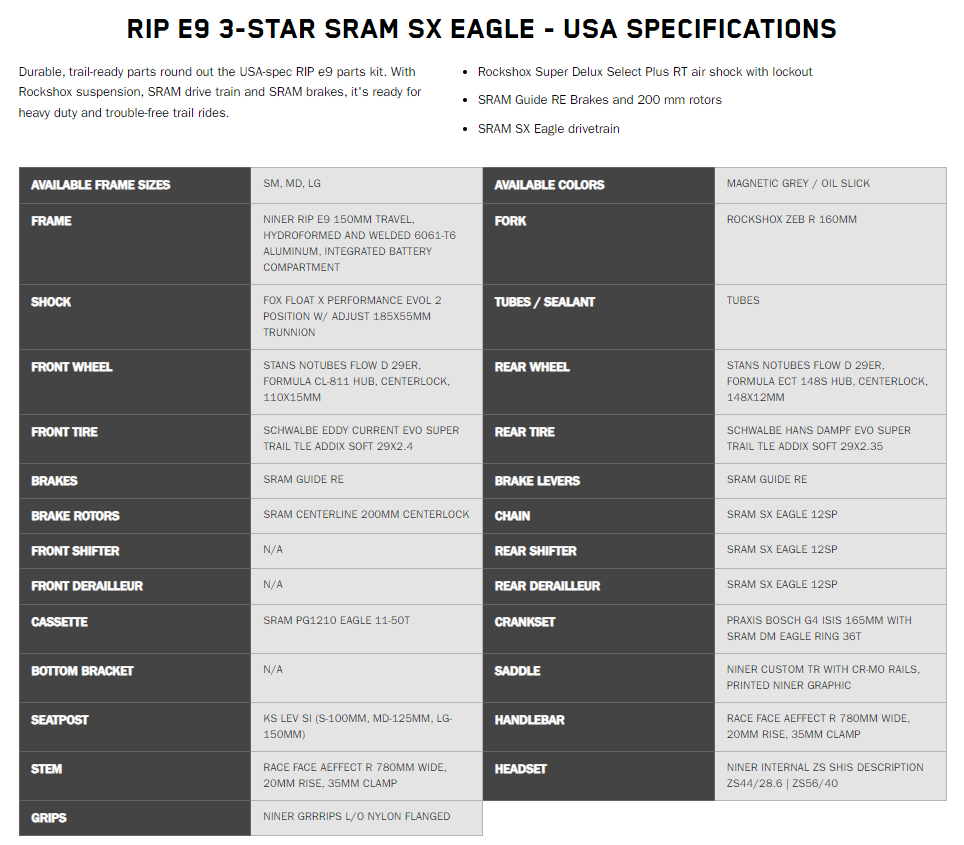

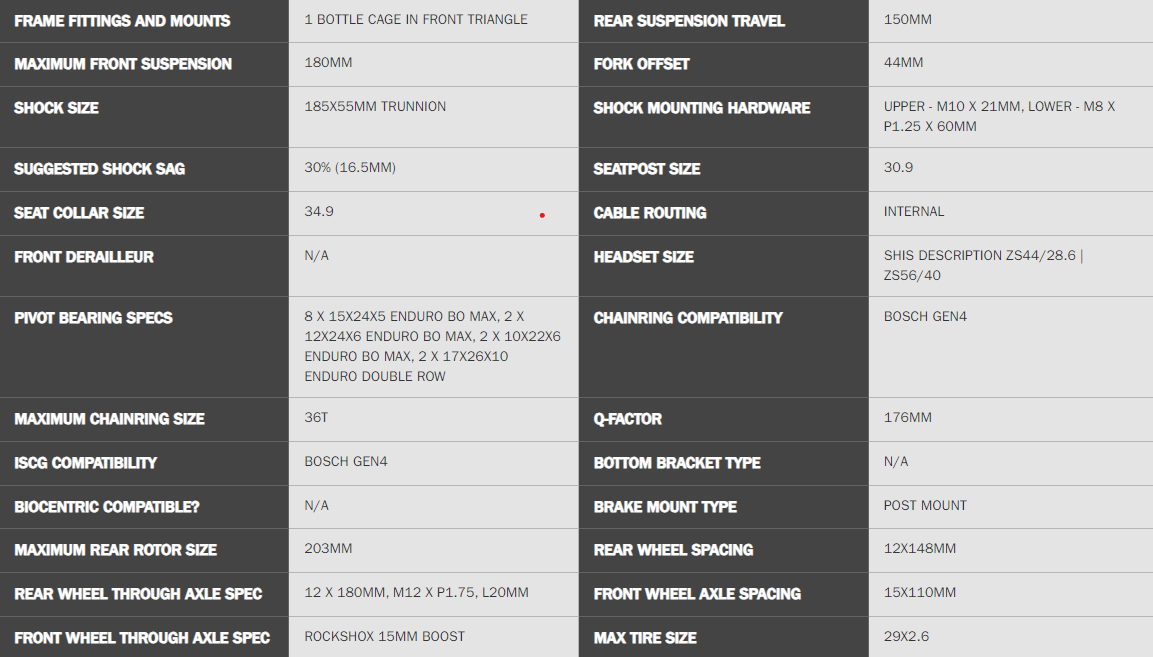

ESPECIFICAÇÕES TÉCNICAS

Available frame sizes

SM, MD, LG

MOTOR

BOSCH GEN4 PERFORMANCE LINE CX 20MPH

DISPLAY

BOSCH PURION

SHOCK

ROCKSHOX SUPER DELUX SELECT PLUS RT 185X55MM TRUNNION

FRONT WHEEL

STANS NOTUBES FLOW D, FORMULA CL-811 HUB 110X15MM FRONT

FRONT TIRE

MAXXIS MINION DHF 3C/EXO/TR 29X2.5WT FRONT

BRAKES

SRAM GUIDE RE

BRAKE ROTORS

SRAM CENTERLINE 200MM CENTERLOCK

FRONT SHIFTER

N/A

FRONT DERAILLEUR

N/A

CASSETTE

SRAM PG1210 EAGLE 11-50T

BOTTOM BRACKET

N/A

SEATPOST

KS LEV SI (S-100MM, MD-125MM, LG-150MM)

STEM

RACE FACE AEFFECT R, 35MM CLAMP

GRIPS

NINER GRRRIPS L/O NYLON FLANGED

Available colors

Black

FRAME

NINER RIP E9 150MM TRAVEL

FORK

ROCKSHOX YARI RC 160MM

BATTERY

BOSCH POWERTUBE 625WH

TUBES/SEALANT

TUBES

REAR WHEEL

STANS NOTUBES FLOW D, FORMULA ECT-148S HUB 148X12MM REAR

REAR TIRE

MAXXIS AGGRESSOR 2C/EXO/TR 29X2.5WT REAR

BRAKE LEVERS

SRAM GUIDE RE

CHAIN

SRAM SX EAGLE 12SP

REAR SHIFTER

SRAM SX EAGLE 12SP

REAR DERAILLEUR

SRAM SX EAGLE 12SP

CRANKSET

PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T

SADDLE

NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC

HANDLEBAR

RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP

HEADSET

NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40

APPROX. WEGHT

55.5 LBS/ 25.2 KG
