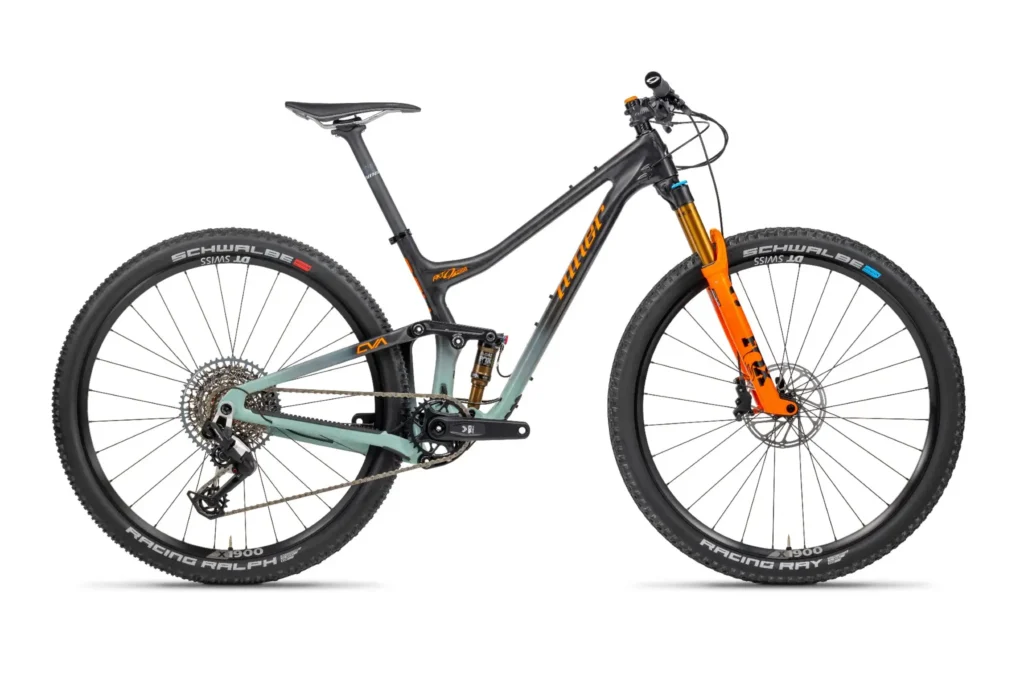

RKT 9 RDO
This “trail-country” full-suspension bike features 120mm front suspension and a lightweight, pedaling-friendly carbon fiber XC frame.
Trail-ready for liftoff
On the race course or on the trail, this RKT is ready to launch
We made our original RKT 9 more versatile with a stout 120mm suspension fork and slightly slacker geometry. Hammer the race course or hit the trails with a pedal friendly bike that’s not afraid to get rowdy going down. With 90mm of efficient CVA rear suspension, you’ll be quickest to the top of the climbs, yet pay no penalty going down.
The original, amplified
Niner’s legendary RKT 9 RDO is famous for light weight, efficient pedaling and quick handling. It’s been proven since inception on race courses around the world. Riders rave about lightning-quick responsiveness, instant acceleration, and supple suspension.
Yet for many riders, a race is simply a great reason to get out for a long weekend, ride some trails, and mingle with friends after the event. You could say it’s a party up front and business out back.
With that in mind, we’re building our race-ready RKT 9 RDO bikes with premium 120mm suspension forks. This RKT is fast enough to mix up the lead group in a marathon, yet fun enough for an all-day epic on the day after. Thanks to a stiffer front fork, longer travel, and slacker geometry, you can confidently attack the course both uphill and downhill.
The original, amplified
Niner’s legendary RKT 9 RDO is famous for light weight, efficient pedaling and quick handling. It’s been proven since inception on race courses around the world. Riders rave about lightning-quick responsiveness, instant acceleration, and supple suspension.
Yet for many riders, a race is simply a great reason to get out for a long weekend, ride some trails, and mingle with friends after the event. You could say it’s a party up front and business out back.
With that in mind, we’re building our race-ready RKT 9 RDO bikes with premium 120mm suspension forks. This RKT is fast enough to mix up the lead group in a marathon, yet fun enough for an all-day epic on the day after. Thanks to a stiffer front fork, longer travel, and slacker geometry, you can confidently attack the course both uphill and downhill.
Suspensão CVA

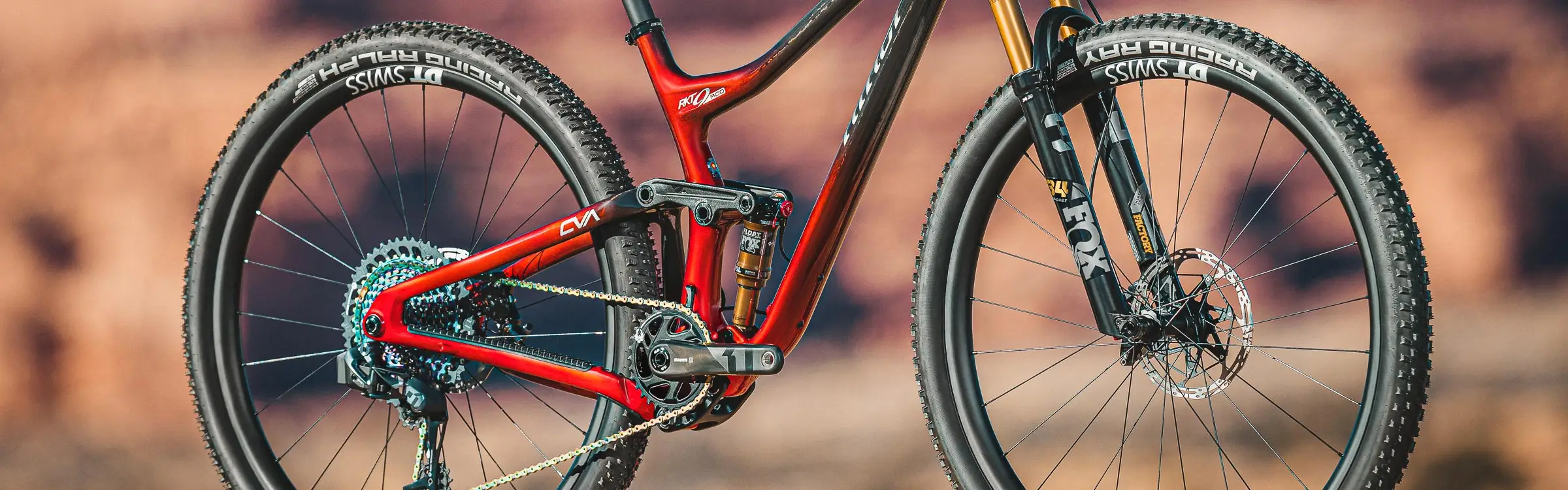

Niner’s Constantly Varying Arc, or CVA™, suspension design is a short dual-link, four-bar system unique to Niner, developed in house and patented. It’s built to be supple yet stable, controlling unwanted suspension movement with calibrated anti-squat, yet remaining active while climbing and descending.
With 90mm of tuned travel in the RKT 9 RDO, it’s sensitive to small bumps in the early stroke yet supportive in the mid-stroke, which gives riders a platform for pumping and popping off terrain. Going down, it’s consistent and controlled. With no need for heavy compression damping to control unwanted movement, CVA shocks are tuned for consistent, confidence-inspiring behavior on descents.
Stiffness, efficiency, light weight, and durability are all critical. That’s why we use Enduro Max Black Oxide pivot bearings, rigid, machined aluminum linkages, and high end fasteners to hold it all together. If you’re going to bother pedaling a full-suspension bike, you’d best make sure it’s made to work right, all the time.
Fibra de carbono RDO
Any race bike worth its weight these days is made from carbon fiber. Carbon fiber is common, but care, quality and attention to detail are not. In our quest to make the best bikes, we’re not cutting any corners. Niner Race Day Optimized carbon fiber is a cut above.
We start with the best grades of raw carbon layered precisely according to the stress points on the frame structure. In construction, our process employs rigid internal molds and results in tighter, more consistent compaction of the carbon fabric.
The result? Increased precision in wall thickness and reduced resin pooling in the final product. Not only are Niner frames stronger, but we can also build more elaborate structures with better ride tuning, increased stiffness, outstanding durability, and less weight.
Fibra de carbono RDO
Any race bike worth its weight these days is made from carbon fiber. Carbon fiber is common, but care, quality and attention to detail are not. In our quest to make the best bikes, we’re not cutting any corners. Niner Race Day Optimized carbon fiber is a cut above.
We start with the best grades of raw carbon layered precisely according to the stress points on the frame structure. In construction, our process employs rigid internal molds and results in tighter, more consistent compaction of the carbon fabric.
The result? Increased precision in wall thickness and reduced resin pooling in the final product. Not only are Niner frames stronger, but we can also build more elaborate structures with better ride tuning, increased stiffness, outstanding durability, and less weight.
“Niner makes plenty of bikes for climbing mountains, but as far as XC bikes go, the RKT is meant for climbing podiums”
“The marriage of speed and stability is courtesy of some smart geometry decisions Niner employed while designing this dedicated XC bike.”
“Niner refreshes its thinking with RKT 9 XC ripper”
“Thanks to the new geometry, the RKT can be pushed hard in corners and come out the other end with plenty of momentum.”
“Climbing, whether seated and spinning, standing and sprinting, or delicately picking through precarious rock-and-root sections with certain death off to the right were all handled without drama.”
RKT 9 RDO
Niner Bikes reserves the right to change bike assembly specification at any time without notice. While we make every effort to publish accurate build specs, substitutions and/or running changes may be made without warning.
TABELA DE GEOMETRIA

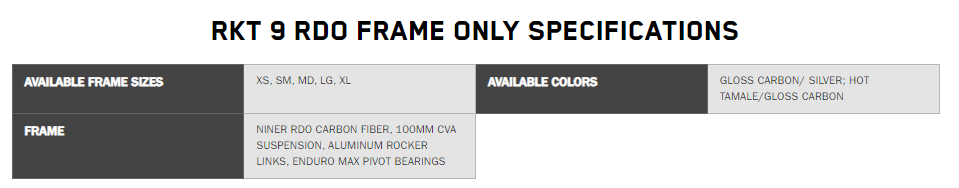

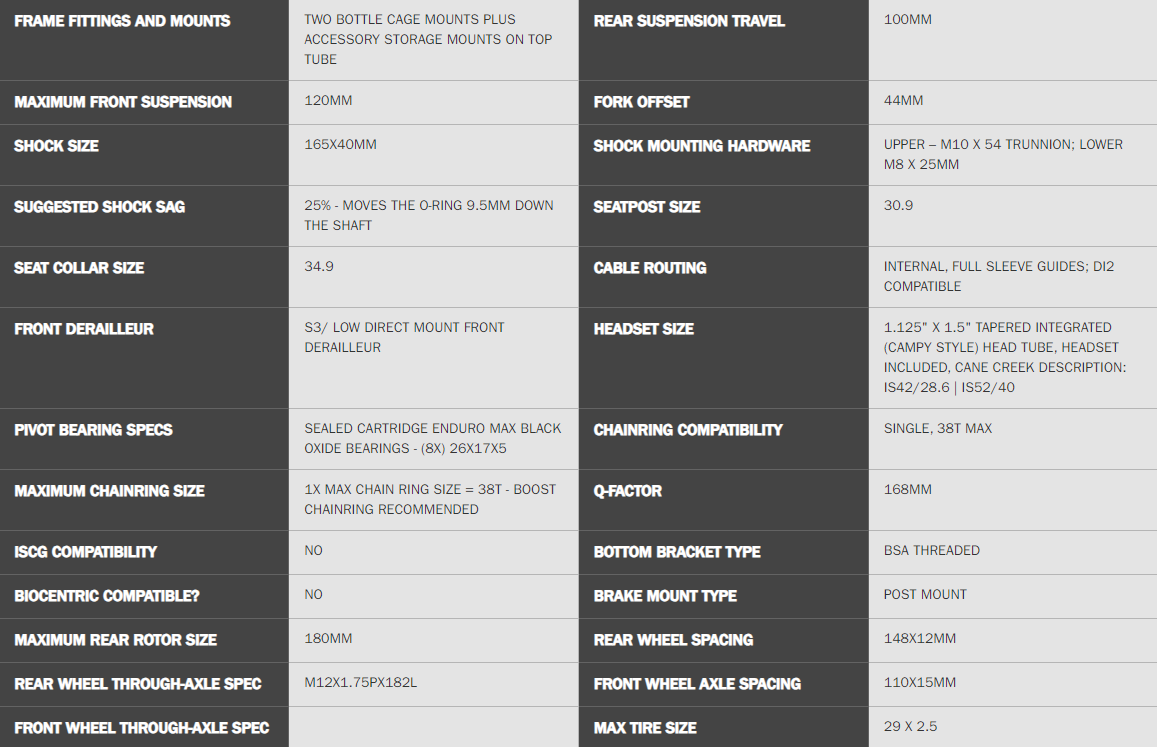

ESPECIFICAÇÕES TÉCNICAS
FERRAGENS E SUPORTES PARA ARMAÇÕES
ALL SIZES HAVE ONE BOTTLE MOUNT INSIDE FRONT TRIANGLE. M, L AND XL HAVE AN ADDITIONAL BOTTLE MOUNT UNDER DOWN TUBE.
SUSPENSÃO DIANTEIRA MÁXIMA
120MM
TAMANHO DO CHOQUE
165 X 38MM – 90MM TRAVEL
SUGESTÃO DE AMORTECIMENTO DE CHOQUES
25% – MOVES THE O-RING 9.5MM DOWN THE SHAFT
TAMANHO DO COLARINHO DO ASSENTO
34.9
DESCARRILADOR DIANTEIRO
S3/ LOW DIRECT MOUNT FRONT DERAILLEUR
ESPECIFICAÇÕES DO ROLAMENTO PIVÔ
SEALED CARTRIDGE ENDURO MAX BLACK OXIDE BEARINGS – (8X) 26X17X5
TAMANHO MÁXIMO DA CORRENTE
1X MAX CHAIN RING SIZE = 38T – BOOST CHAINRING RECOMMENDED
COMPATIBILIDADE COM O ISCG
NO
BIOCENTRIC COMPATÍVEL?
NO
TAMANHO MÁXIMO DO ROTOR TRASEIRO
180MM
ESPECIFICAÇÃO DO EIXO TRANSVERSAL DA RODA TRASEIRA
M12X1.75PX182L
ESPECIFICAÇÃO DO EIXO TRANSVERSAL DA RODA DIANTEIRA
CURSO DA SUSPENSÃO TRASEIRA
90MM
DESVIO DO GARFO
44MM
HARDWARE DE MONTAGEM POR CHOQUE
22MM X M8
TAMANHO DO ESPIGÃO DE SELIM
30.9
ENCAMINHAMENTO DE CABOS
INTERNAL, FULL SLEEVE GUIDES; DI2 COMPATIBLE
TAMANHO DO FONE DE OUVIDO
1.125″ X 1.5″ TUBO DA CABEÇA INTEGRADO AFUNILADO (ESTILO CAMPY), FONE DE OUVIDO INCLUÍDO, DESCRIÇÃO DO CANE CREEK: IS42/28.6 | IS52/40
COMPATIBILIDADE COM ANÉIS DE CORRENTE
COMPATÍVEL COM SISTEMAS PADRÃO 1X, 2X E 3X
FATOR Q
168MM
TIPO DE SUPORTE INFERIOR
73MM PF30 BB SHELL (ADAPTADORES NECESSÁRIOS PARA BSA TIPO BBS)
TIPO DE MONTAGEM DO FREIO
MONTAGEM EM POSTE
ESPAÇAMENTO ENTRE AS RODAS TRASEIRAS
148X12MM
ESPAÇAMENTO ENTRE EIXOS DAS RODAS DIANTEIRAS
110X15MM
TAMANHO MÁXIMO DO PNEU
29X2.3″ (TIRE SIZES VARY BY BRAND, SOME MAY NOT FIT)
