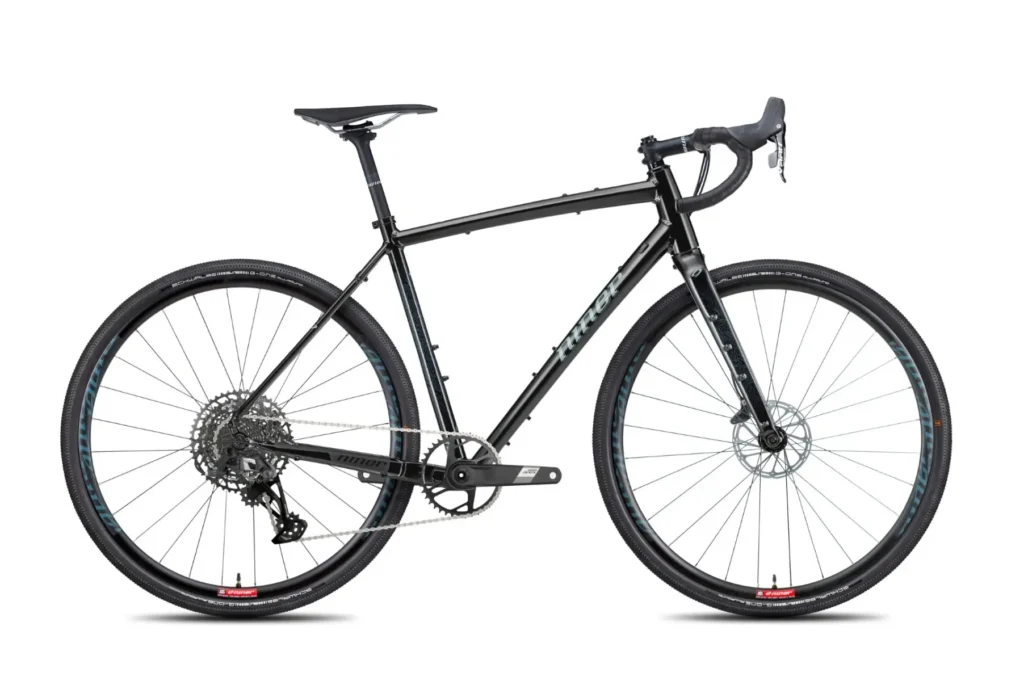

RLT 9 ALLOY

Rugged, versatile, attainable

RLT 9 Aluminum

Ride beyond the city limits, without going beyond your budget.

The unmatched versatility of this gravel bike gives its rider pure, unfettered freedom and access virtually everywhere. Sprint from asphalt to cinder path, swerve onto some singletrack, cut across to a gravel road, unspool a few miles, hop a gutter, cut through the alley, and back into the bike lane.

Adventure awaits… all aboard aluminum

The RLT 9 maximizes your freedom and access to the Road Less Traveled. With affordable, high performing materials, elegant engineering, and a fully-featured frameset, there’s nothing stopping you from achieving your off road aspirations. There’s no surface that can’t be ridden, no side roads that must be skipped. And best of all, the RLT 9 offers unbeatable value at every level.

Niner’s 6061 aluminum RLT 9 is welded with hydroformed aluminum tubing. This material is universally praised for affordability and versatility. Before welding, we are careful to shape the tubing to optimize strength, durability, stiffness, all the while keeping it as lightweight as possible.

The latest version of our vaunted aluminum gravel frame features a new, forged chainstay yoke to improve tire clearance and stiffness. This design leaves us with an elegant and simple multi-talented platform.

Adventure awaits… all aboard aluminum

The RLT 9 maximizes your freedom and access to the Road Less Traveled. With affordable, high performing materials, elegant engineering, and a fully-featured frameset, there’s nothing stopping you from achieving your off road aspirations. There’s no surface that can’t be ridden, no side roads that must be skipped. And best of all, the RLT 9 offers unbeatable value at every level.

Niner’s 6061 aluminum RLT 9 is welded with hydroformed aluminum tubing. This material is universally praised for affordability and versatility. Before welding, we are careful to shape the tubing to optimize strength, durability, stiffness, all the while keeping it as lightweight as possible.

The latest version of our vaunted aluminum gravel frame features a new, forged chainstay yoke to improve tire clearance and stiffness. This design leaves us with an elegant and simple multi-talented platform.

Fork in the road? No problem with RDO carbon out front

Upfront, the RLT 9 features our all-new RDO carbon fiber fork. It’s made from our famous Race Day Optimized carbon fiber, which is built with a unique process that optimizes complete compaction of the carbon layers under heat and pressure. By maximizing the carbon-to-resin ratio in the finished product, we keep this fork light and stiff while improving compliance over rough surfaces.

The brake hose is routed internally through a fully sleeved guide tube, which mean no more fishing for wires. Multiple rack, fender, and cargo mounts make light work of heavy loads. The 12x100mm thru-axle and flat mount disc brake attachments are compatible with contemporary components. Finally, for fully off-grid adventures, the new fork features internal wire routing and fitment for a hub dynamo powered light.

Choose your wheels, choose your adventure

With more tire clearance than ever before, the RLT 9 can accommodate tires as wide as 700x50c. And if you prefer smaller diameter wheels with wider rubber, interchangeability is easy. Simply swap to 650b wheels and fit tires as wide as 2.0.

Everyone has a different reason for the ride. Durable, affordable aluminum is ideal for a range of rides. Anything is possible – from ripping around campus to a cross-continent cruise, the RLT 9 has it handled.

Choose your wheels, choose your adventure

With more tire clearance than ever before, the RLT 9 can accommodate tires as wide as 700x50c. And if you prefer smaller diameter wheels with wider rubber, interchangeability is easy. Simply swap to 650b wheels and fit tires as wide as 2.0.

Everyone has a different reason for the ride. Durable, affordable aluminum is ideal for a range of rides. Anything is possible – from ripping around campus to a cross-continent cruise, the RLT 9 has it handled.

Frame features fit for going farther

The RLT 9 is made for gravel roads around the world. And if you’re serious about literally riding anywhere in the world, this bike will get you there.

Multiple mounting points on the frame give you the option to fit bottles, bags, racks, fenders, and frankly, almost any accessory that could be bolted to your bike. Custom bags mounted to the frame won’t require straps, and gear of all sorts can ride along with you.

Internal cable routing keeps the frame looking tidy. Combined with a PF30 bottom bracket shell, it’s easy to fit a geared or singlespeed drivetrain, and either mechanical or electronic shifting. And if your rides tend to take a turn for the rowdy, there’s even room to fit a dropper post.

bicyclingpng-1545954246962 (3)

“Love to venture off-pavement. This bike is relationship material.”

bikerumorlogotopheaderrainbowretina5201png-1543955967703 (1)

“Niner has updated their RLT line, putting thru axles where they weren’t and making them ever more capable of letting you hit the “road less traveled”

wsiimageoptimgritcx_logo01_xsmallpng-1546299094502

“You might recall one of the first bikes we tested at grit.cx was the Niner RLT 9, which was the mountain bike company’s first foray into the drop bar world.”

radavistlogowhitepng-1546032252267 (1)

“Niner felt like “good” wasn’t enough so they took the entire RLT9 line and gave it thru-axles along with a new fork.”

RLT 9 ALLOY

Limpar

Niner Bikes reserves the right to change bike assembly specification at any time without notice. While we make every effort to publish accurate build specs, substitutions and/or running changes may be made without warning.

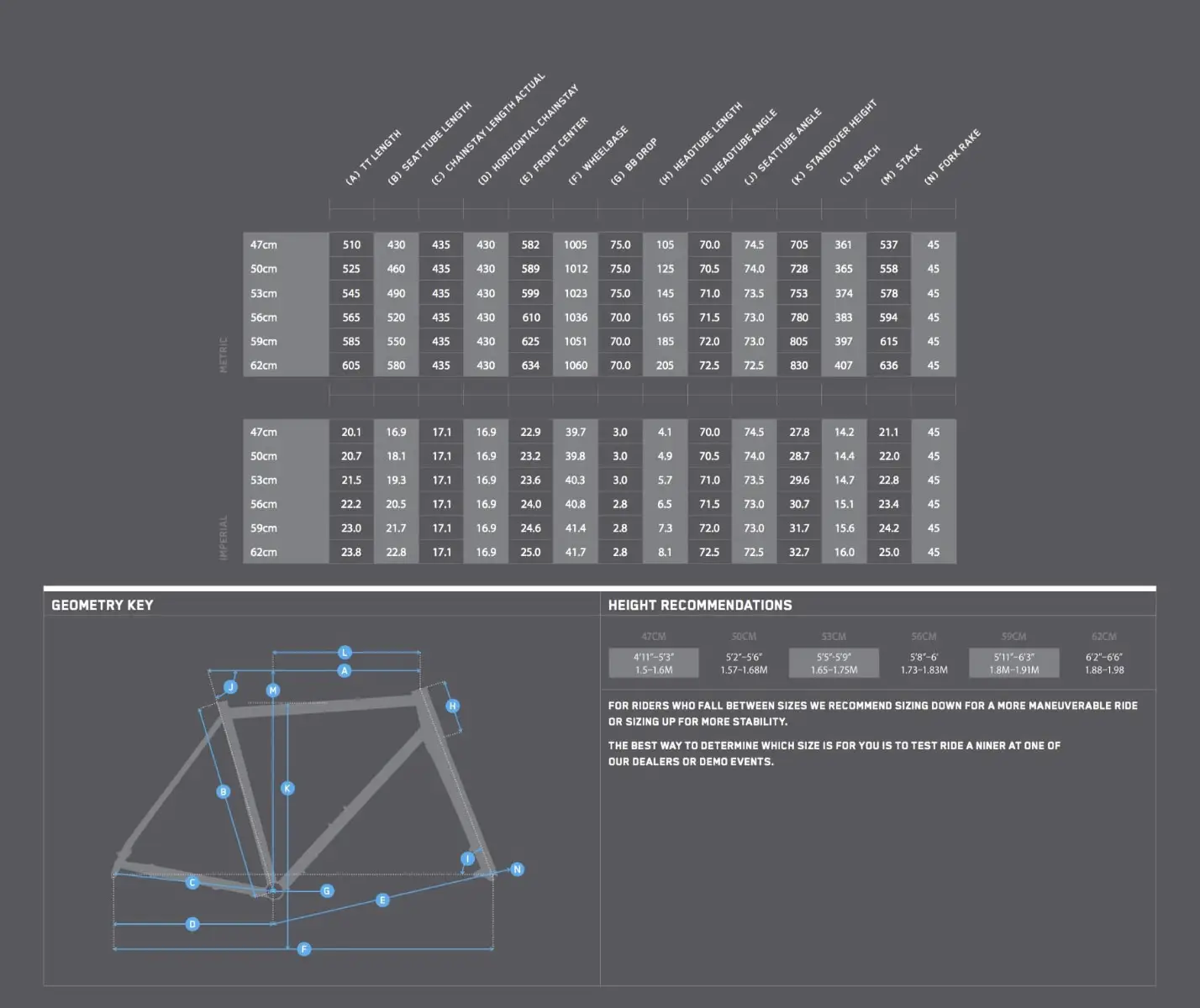

TABELA DE GEOMETRIA

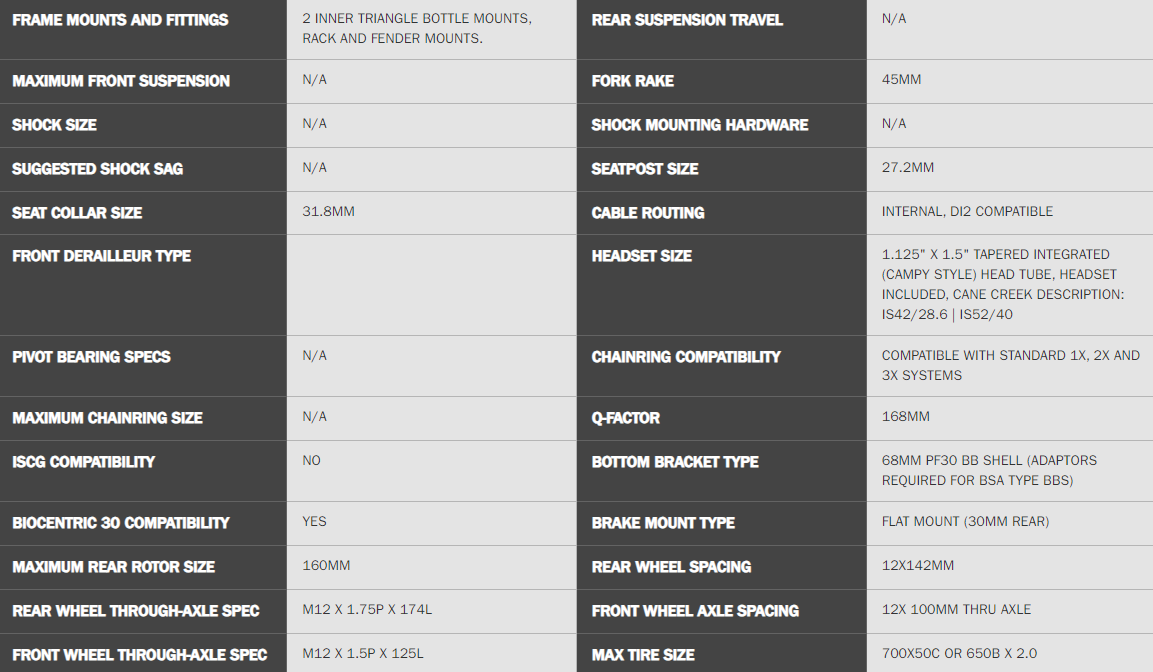

ESPECIFICAÇÕES TÉCNICAS

FERRAGENS E SUPORTES PARA ARMAÇÕES

2 INNER TRIANGLE BOTTLE MOUNTS, RACK AND FENDER MOUNTS.

SUSPENSÃO DIANTEIRA MÁXIMA

N/A

TAMANHO DO CHOQUE

N/A

SUGESTÃO DE AMORTECIMENTO DE CHOQUES

N/A

TAMANHO DO COLARINHO DO ASSENTO

31.8MM

FRONT DERAILLEUR TYPE

ESPECIFICAÇÕES DO ROLAMENTO PIVÔ

N/A

TAMANHO MÁXIMO DA CORRENTE

N/A

COMPATIBILIDADE COM O ISCG

NO

BIOCENTRIC 30 COMPATIBILITY

SIM

TAMANHO MÁXIMO DO ROTOR TRASEIRO

160MM

ESPECIFICAÇÃO DO EIXO TRANSVERSAL DA RODA TRASEIRA

M12 X 1.75P X 174L

ESPECIFICAÇÃO DO EIXO TRANSVERSAL DA RODA DIANTEIRA

M12 X 1.5P X 125L

CURSO DA SUSPENSÃO TRASEIRA

N/A

FORK RAKE

45MM

HARDWARE DE MONTAGEM POR CHOQUE

N/A

TAMANHO DO ESPIGÃO DE SELIM

27.2MM

ENCAMINHAMENTO DE CABOS

INTERNAL, DI2 COMPATIBLE

TAMANHO DO FONE DE OUVIDO

1.125″ X 1.5″ TAPERED INTEGRATED (CAMPY STYLE) HEAD TUBE, HEADSET INCLUDED, CANE CREEK DESCRIPTION: IS42/28.6 | IS52/40

COMPATIBILIDADE COM ANÉIS DE CORRENTE

COMPATÍVEL COM SISTEMAS PADRÃO 1X, 2X E 3X

FATOR Q

168MM

TIPO DE SUPORTE INFERIOR

68MM PF30 BB SHELL (ADAPTORS REQUIRED FOR BSA TYPE BBS)

TIPO DE MONTAGEM DO FREIO

FLAT MOUNT (30MM REAR)

ESPAÇAMENTO ENTRE AS RODAS TRASEIRAS

12X142MM

ESPAÇAMENTO ENTRE EIXOS DAS RODAS DIANTEIRAS

12X 100MM THRU AXLE

TAMANHO MÁXIMO DO PNEU

700X50C OR 650B X 2.0
